Khoom Description

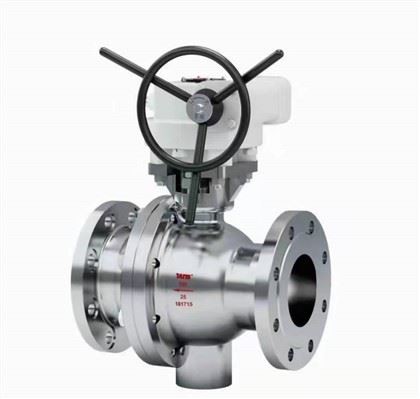

Newlotoke Trunnion pob li qub yog dav siv li qub los tswj kev ntws thiab siab. Lawv feem ntau siv rau hauv cov kav dej uas thauj cov kua los yog roj. Qhov zoo tshaj plaws ntawm pob li qub yog tias lawv tuaj yeem qhib thiab kaw sai, ua rau lawv muaj txiaj ntsig zoo hauv kev teb rau cov xwm txheej kub ntxhov.

Fixed pob li qub yog tsim los ntawm cov pob, stems thiab valve lub cev. Tus kheej kheej feem ntau yog kheej kheej lossis hemispherical, thiab qia yog tsau rau saum tus kheej. Thaum lub qia tig, lub pob tig nrog nws, tswj cov dej ntws hauv cov yeeb nkab.

Muaj ntau ntau hom pob valve, xws li ib-txoj kev pob li qub, peb-txoj kev pob li qub, plaub-txoj kev pob li qub, thiab lwm yam. Ntawm lawv, ib-txoj kev pob li qub tsuas tso kua dej ntws mus rau hauv ib qho kev taw qhia, thaum peb-txoj kev. txoj kev pob li qub thiab plaub-txoj kev pob li qub tuaj yeem siv rau kev hloov pauv thiab sib xyaw cov dej ntws.

Qhov kom zoo dua ntawm lub pob valve yog tias tsis muaj cov ntsiab lus txuas ntxiv ntawm lub qia thiab lub pob, yog li tsis muaj cua nkag los yog leaching thaum lub sijhawm ua haujlwm. Cov spheres feem ntau yog ua los ntawm cov ntaub ntawv hnav-tiv taus, uas muaj kev tiv thaiv corrosion zoo thiab hnav tsis kam.

Fixed pob li qub tau siv dav hauv ntau yam kev lag luam thiab pej xeem cov kav dej, xws li hluav taws xob fais fab, petrochemical, papermaking, tshuaj, kev txuag dej thiab lwm yam haujlwm. Hauv kev kho dej, pob li qub feem ntau siv los tswj kev ntws thiab siab los txhawb kev ua liaj ua teb irrigation, dej hauv nroog thiab cov dej hauv av.

Feem ntau, raws li hom valve hom, lub pob valve ruaj khov muaj qhov zoo ntawm cov qauv yooj yim, siv tau yooj yim thiab kav ntev, thiab muaj ntau yam kev siv.

Tsim Standard plus

◆ Tsim: API 6D / API608 / BS 5351

◆ Ntsej muag ntsej muag: API6D / ASME16.10

◆ Flange kawg: ASME B16.5 / ASME B16.47

◆ Butt-welding kawg: ASME B16.25

◆ Test: API6D / API598

◆ Hluav taws kub nyab xeeb: API607/API6FA

Technical Specification ntxiv

◆ Loj: 1/2 "~ 32"

◆ Chav Kawm: 150Lb ~ 2500Lb

◆ Kev sib txuas: Ob chav flange / Butt weld

◆ Kev khiav hauj lwm: Worm Iav / Pneumatic actuator / Electric actuator

◆ Kub: Lub rooj zaum mos -60 degree rau ntxiv rau 180 degree, Hlau rooj -196 degree rau ntxiv 550 degree

◆ Daim Ntawv Thov: Petroleum refining / Chemical / Coal chemical kev lag luam / High lossis low temperature tseem ceeb coditions

Khoom Option ntxiv

◆ Lub cev: Carbon steel (WCB, LCB, WC6, WC9, C5, A105, LF2) /

◆ Stainless hlau (CF8, CF8M, CF3, CF3M, F304, F316, F304L, F316L) /

◆ Duplex stainless hlau (4A, 5A, 6A, F51, F53)

◆ Pob: A105 / F6A / F304 / F316 / F53

◆ qia: F6A / F304 / 17-4PH / F53

◆ Hlau rooj: Surfacing spay: STL surfacing / Ni60 / Ni55 / Wolfram carbide / Chromium carbide

Tsim Feature

◆ Nws siv lub cylindrical caij nplooj ntoos hlav los yog yoj lub caij nplooj ntoos hlav preloaded movable hlau valve lub rooj qauv, tsim nyog sealing pre-tightening quab yuam tsim, saj zawg zog kaw thiab qhib, zoo xyuas kom meej qhov kev cia siab ntawm sealing.

◆ Lub qia valve nrog cov cuab yeej tshwj xeeb tsis yog tsuas yog ua kom cov khoom ntim yuav xau, tab sis kuj tiv thaiv lub valve qia los ntawm kev tawm.

◆ Raws li qhov xav tau ntawm cov neeg siv, nws tuaj yeem tsim kho kom haum rau cov qauv ntawm cov plua plav (suav nrog cov khoom siv), slurry thiab lwm yam xov xwm, kom lub pob valve muaj kev hnav zoo dua thiab kub tsis kam.

◆ Nws muaj hluav taws-pov thawj thiab tiv thaiv zoo li qub.

◆ Cov qauv ntawm lub pob valve yuav tsum tau siv raws li cov lus qhia ntws.
