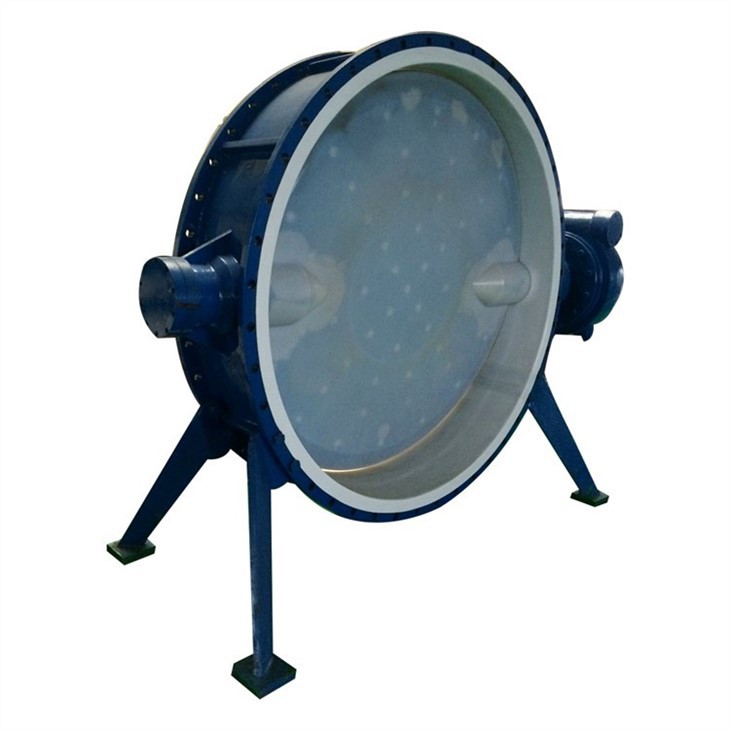

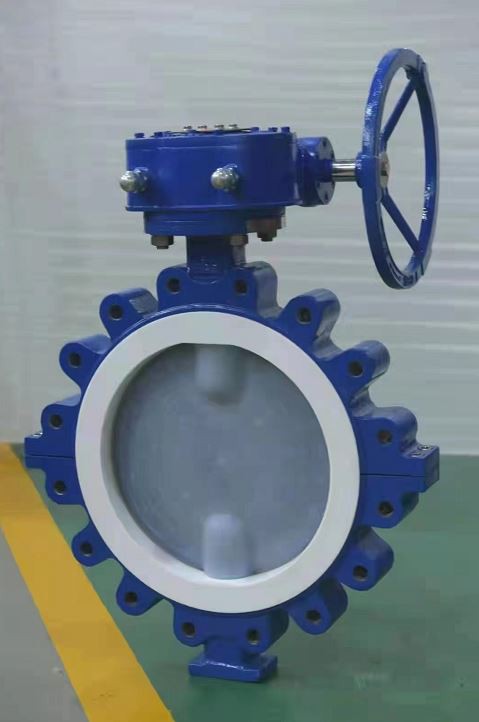

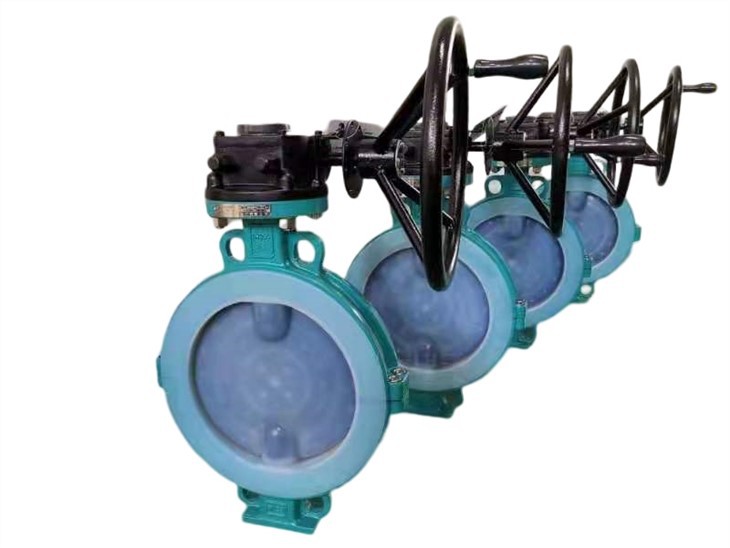

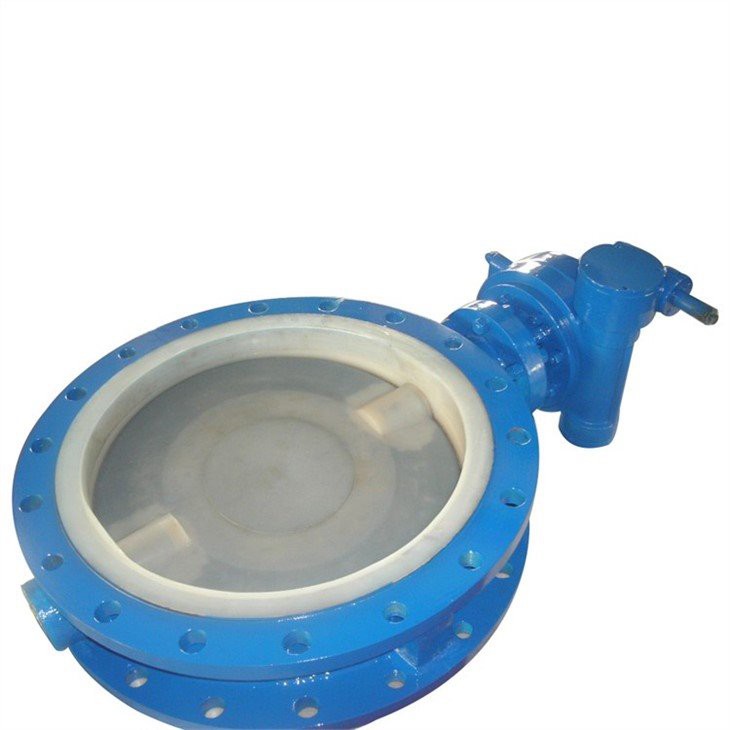

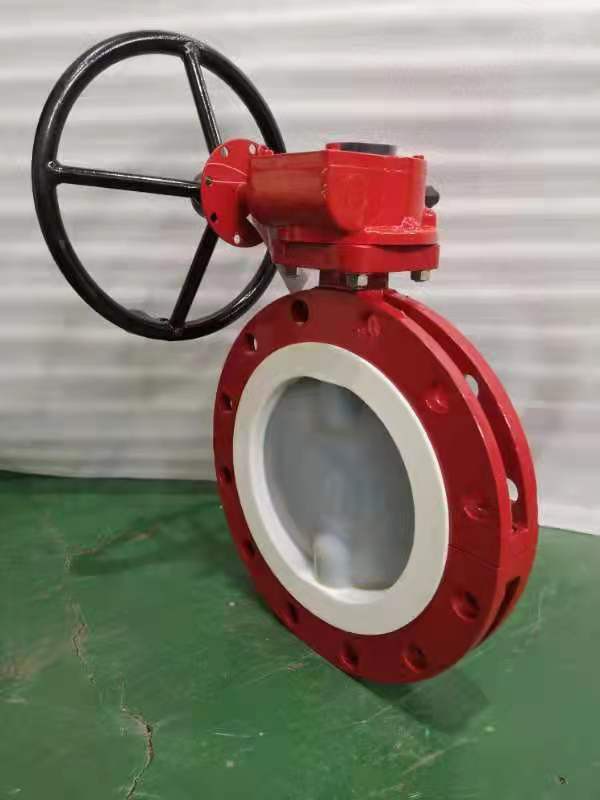

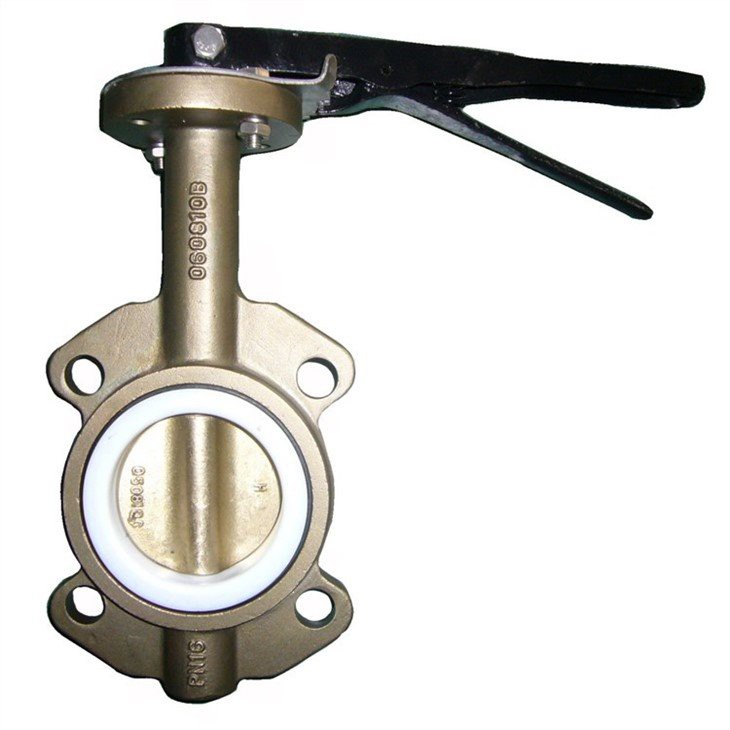

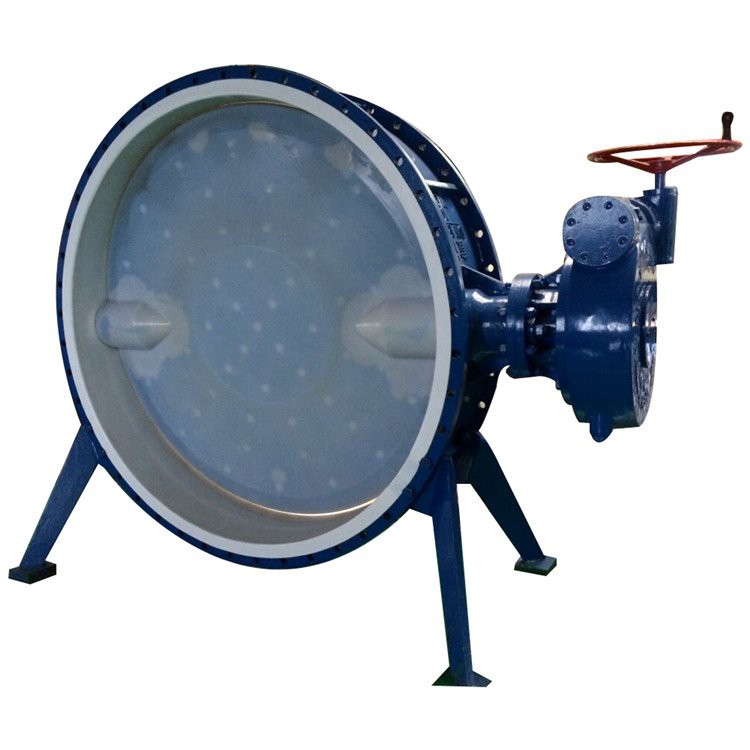

Concentric PTFE Rooj Npauj Npaim Valve

PTFE lined npauj npaim valve (Teflon lined npauj npaim valve) yog qhov tseem ceeb hauv WCB lub cev roj ntsha PTFE, F46, thiab lwm yam cov plastics, feem ntau yog siv tshuaj tiv thaiv tshuaj tiv thaiv xeb, feem ntau siv hauv cov kua xeb xws li nitric acid thiab sulfuric acid.

Tsim Nta +

Concentric tsim

Tsis yog Pin qia

Tsawg torque

Xoom paim quav

Tsawg torque

Kev tu tus kheej

Tshuab tawg-ntawv pov thawj

ISO 5211 sab saum toj flange

Tus Qauv Tsim Qauv +

Tsim: API 609

Ntsej muag ntsej muag: ISO5752-20 / ISO5752-13

Qhov kawg txuas: ASME B16.5 / ASME B16.47 / EN1092-2

Ntsuas: API598

Kev Qhia Tshwj Xeeb +

Loj: 2 "~ 80" (DN50 ~ DN2000)

Chav Kawm: 150Lb (PN10, PN16)

Kev Txuas Lus: Muab ob npaug rau flange / U-Hom Flange / Wafer / Lug

Txoj Kev Ua Haujlwm: Los Ntawm Tes / Worm Gear / Pneumatic actuator / Electric actuator

Kub: -20 ° C rau +180 ° C

Daim Ntawv Thov: Kev lim dej ua kom mob / Desalination ntawm dej hiav txwv / Tshuaj / Tshuaj lom neeg ua haujlwm

Khoom Siv Khoom Xaiv +

Lub cev: WCB

Disc: WCB / Stainless hlau (CF8, CF8M, CF3, CF3M) /

Duplex stainless hlau (4A, 5A, 6A) /

Hastelloy alloy (N-12MV, CW-12MW, CW-2M) /

Inconel alloy (CY-40, CW-6MC) /

Monel alloy (M35-1) /

Aluminium bronze alloy (C95400, C95500, C95800, AB2C)

Qia: SS420 / 17-4PH / F304 / F316 / K500

Lub rooj: F46 / PTFE
