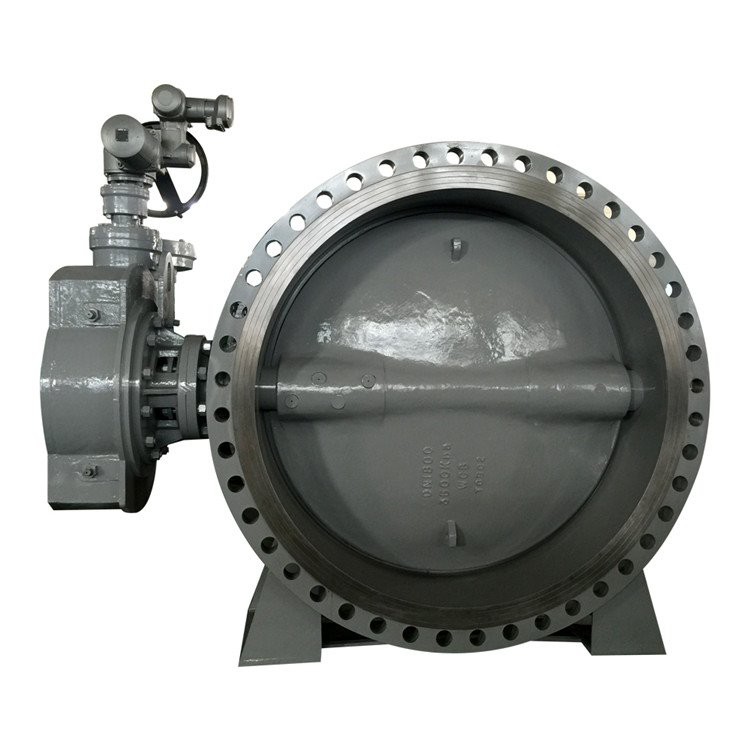

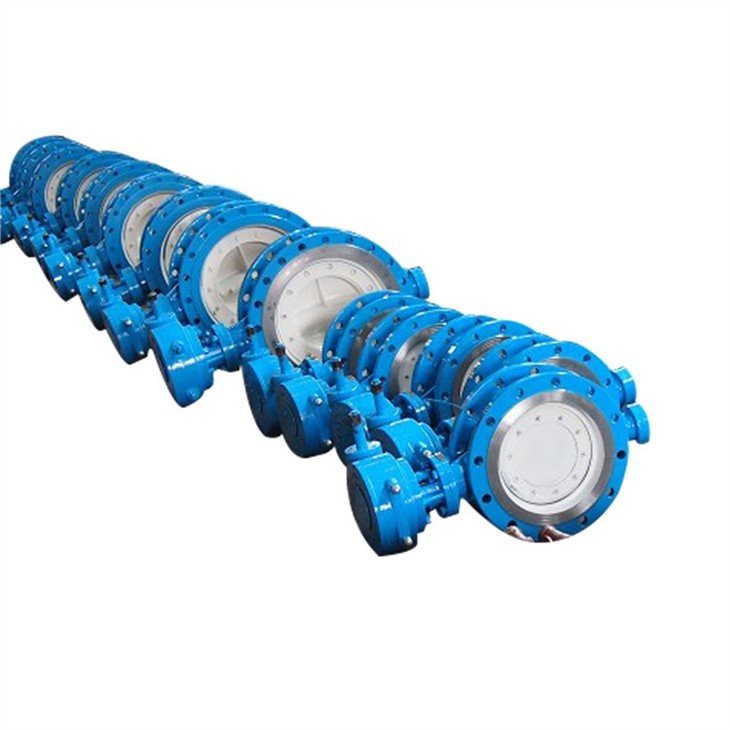

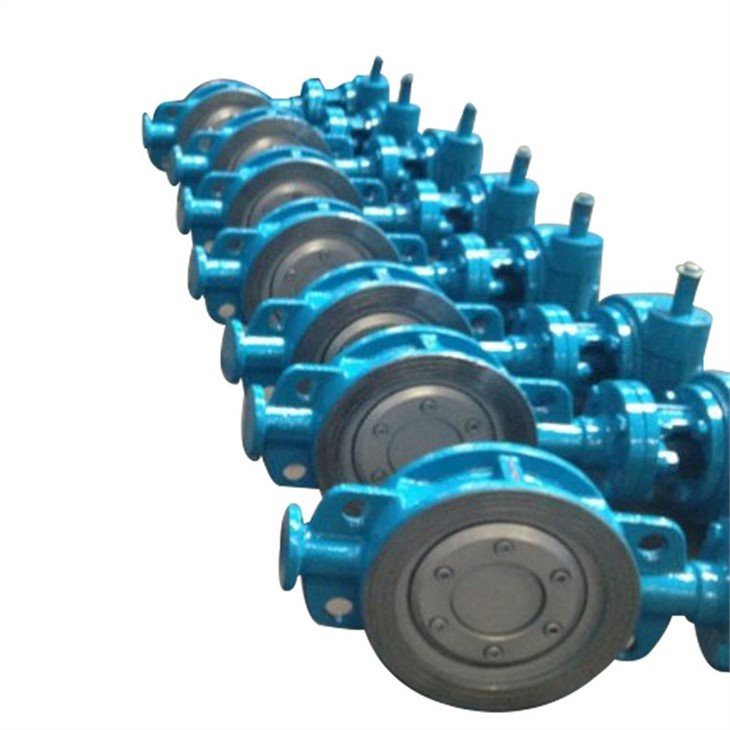

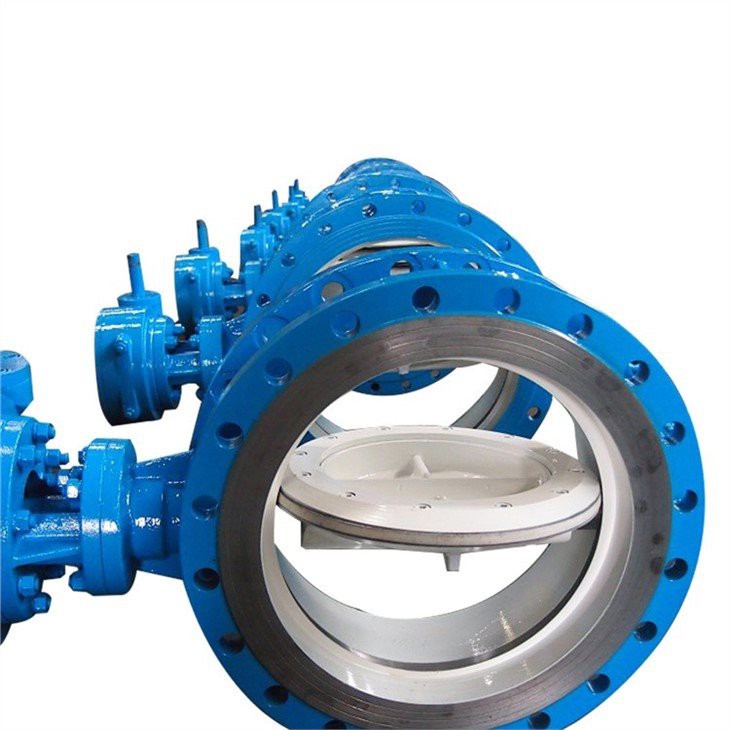

Triple Offset EPDM Npauj Npaim Valve

Nws cov txheej txheem tshwj xeeb yog tias thaum muab ob npaug rau eccentric valve qia axis txoj hauj lwm yog eccentric, lub conical axis ntawm npauj npaim phaj sealing saum npoo yog sauv mus rau lub tog raj kheej axis ntawm lub cev, uas yog, tom qab qhov thib peb eccentricity, seem ntu ntawm npauj npaim phaj. tsis tas li ntawd, nws yog lub voj voog tseeb tab sis lub dav hlau, thiab cov duab ntawm qhov chaw sib khi yog vim li ntawd asymmetrical, nrog ib sab tig mus rau hauv nruab nrab txoj kab nruab nrab ntawm lub cev thiab lwm sab txuas rau kab nruab nrab ntawm lub cev. Cov yam ntxwv loj tshaj plaws ntawm triple eccentric EPDM foob yog tias nws hloov pauv lub qauv kev sib khi, txoj hauj lwm sib khi, tab sis kuj tseem torsion sealing, tso siab rau lub cev tsis ua haujlwm ntawm lub cev khov kho ntawm lub rooj zaum thiab tiv tauj lub siab ntawm lub rooj zaum kom ua tiav cov nyhuv sealing. Nws muaj cov qauv yooj yim thiab kev saib xyuas yooj yim. Kev txhim kho yooj yim, xoom xau thiab lwm yam nta.

Tsim Nta +

1. Cov npauj npaim phaj adopts qauv ntws, thiab nruab nrab ntws kuj coefficient me me

2. Lub sealing nto ntawm lub phaj valve adopts EPDM cov khoom, uas tsis yooj yim rau corrode thiab muaj kev ua tau zoo sealing.

3. Cov qauv sib khi adopts peb-eccentric nyuaj sealing qauv, uas yog: radial eccentricity, axial eccentricity, thiab angular eccentricity. Nws txo qhov kev sib txhuam thaum lub sijhawm qhib lossis kaw ntawm lub valve, xyuas kom meej tias lub valve qhib thiab kaw tau yooj yim, thiab tighter lub valve raug kaw, qhov khi nruj dua. Thaum lub valve qhib, qhov chaw sib khi tau nrawm dua, txo kev hnav thiab txuas lub neej kev pab cuam.

4. Vim tias EPDM yog hloov tau, nws tuaj yeem ua kom tiav sai, kev khiav hauj lwm lub zog me me, thiab nws muaj ntau phau ntawv ua haujlwm, yoog raws, yooj yim, thiab lub zog txuag.

Tus Qauv Tsim Qauv +

Tsim: API 609

Ntsej muag ntsej muag: API609 / ISO5752-20 / ISO5752-13 / DIN F4 / EN558

Ange Flange xaus: ASME B16.5 / ASME B16.47 / EN1092-1 / GOST 12815 / Gost 33259 / MSS-SP44

· Taub Qab Vuam Xaus Xeem: ASME B16.25

Kev Xeem: API598

Safe Kev nyab xeeb rau hluav taws: API607 / API6FA

Kev Qhia Tshwj Xeeb +

· Loj: 2 "~ 80" (DN50 ~ DN2000)

· Chav Kawm: 150LB / PN6 ~ PN25

Kev Txuas Lus: Muab ob npaug rau flange / Taub Qab weld / Lug / Wafer

Ua Haujlwm: Worm iav / Pneumatic actuator / hluav taws xob actuator

· Qhov kub thiab txias: -100 ~ 180 ℃

· Daim Ntawv Thov: Hiav txwv dej / Kev Siv Dej / Tshuaj Siv / Dej Hiav Txwv

Khoom Siv Khoom Xaiv +

· Lub cev& Disc: Carbon hlau (WCB, LCB)

· Cov hlau tsis muaj zog (CF8, CF8M, CF3, CF3M) /

· Duplex stainless hlau (4A, 5A, 6A) /

Ast Hastelloy alloy (N-12MV, CW-12MW, CW-2M) /

Con Inconel alloy (CY-40, CW-6MC) /

· Monel alloy (M35-1) /

· Aluminium bronze alloy (C95400, C95500, C95800, AB2C)

Cov Qauj: SS420 / 17-4PH / F51 / F53 / XM-19 / Monel-K500 / Inconel-625 / Hastelloy-276 / Titanium

Sealing Muag tsis paub tseeb ： (PTFE, RPTFE, EPDM)

· Lub Rooj Tog Zaum: 13Cr surfaing / SS304 surfacing / SS316 surfacing / STL surfacing
